홈 제품 소개체중과 고도 가늠자SH-T17 Multi Function Medical Kiosk
SH-T17 Multi Function Medical Kiosk
SH-T17 Multi Function Medical Kiosk
SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk SH-T17 Multi Function Medical Kiosk

SH-T17 Multi Function Medical Kiosk

제품 상세 정보:
원래 장소: 중국 허난
브랜드 이름: SHANGHE
인증: CE/ISO13485/OMIL
모델 번호: SH-T17
문서: SH-T17-2.pdf
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 11399
포장 세부 사항: 1700*640*1380mm
배달 시간: 5-15 근무일
지불 조건: L/C, D/A, D/P, T/T, MoneyGram, Western Union
공급 능력: 한 달에 6000 세트
지금 연락
  • 상세 정보
  • 제품 설명

상세 정보
제품 이름: SH-T17 다기능 의료용 키오스크 키워드: 의료 키오스크
재료: 금속 캐비넷 사용자 정의: 언어/로고/스티커/색상
지방 측정: 측정 범위 : 지방 : 5.0-75%; 기저 대사 : 385kcal-5000kcal; 혈압: 0-299mmhg (0kpa-39.9kpa); 펄스 범위 : 40-180 비트/분
전원 공급 장치 전압: AC160V-250V,50HZ 데이터 전송: 표준: RS232, WiFi; 옵션: 블루투스, 3G/4G, RJ45
용법: 병원, 클리닉, 약국, Schoos, 체육관, 쇼핑몰 등 언어: 영어를 포함한 17 개 언어를 지원하며 언어를 자유롭게 전환 할 수 있습니다

제품 설명

Product Specifications:

Model
SH-T17 Smart Health Management All-in-One Machine
HD LCD Screen
15.6-inch + 7-inch HD LCD screen, play videos and pictures, intelligent display of results
Intelligent Recognition
Standard face recognition login, user input login, etc. Optional: IC/ID card, QR code scanning, etc. (other methods can be
customized)
Height
Measuring range: 20-205cm; accuracy: ±0.5cm; division value: 0.5cm or 0.1cm adjustable
Weight
Measuring range: 2.0-500kg; accuracy: ±0.1kg; division value: 0.1kg or 0.01kg adjustable
Blood Pressure
Medical grade upper arm tube pulse wave blood pressure monitor, pulse wave blood pressure measurement method, 17-42cm, accuracy
within ±2mmHg
Body Fat
BIA human bioelectrical impedance measurement technology, body fat mass, body fat percentage, basal metabolism, body water mass,
body water percentage, body bone mass, body muscle mass, body muscle percentage, etc.
Body Temperature
Temperature range: 32℃-42.9℃ Measurement error: ±0.2℃ Resolution: 0.1℃ Measuring distance: 1-5cm
Blood Oxygen
Measurement accuracy: within the range of 70%~99% Measurement error is ±2% Resolution: 1%
Blood Sugar
Measuring range: 10.8-600mg/dl (0.6-33.3mmol/L)
Uric Acid
Measuring range: 3-20mg/dl (0.19-1.19mmol/L)
Cholesterol
Measuring range: 100-500mg/dl (2.29-12.93mmol/L)
Waist Circumference
Smart Bluetooth waist ruler, detect waist circumference, hip circumference, waist-to-hip ratio
Urinalysis
14 health indicators including white blood cells, glucose, calcium ions, microalbumin, pH value, etc.
12-lead ECG
Standard 12-lead, dynamic electrocardiogram
Four Blood Lipids
Total cholesterol, HDL, triglycerides, LDL
Hemoglobin
Hemoglobin and hematocrit
Vision
Test content: left and right eye vision test, left and right astigmatism test, color weakness and color blindness test
Mental Health Assessment
Comprehensive psychological assessment in 11 aspects including Hamilton anxiety, depression, loneliness, personality disorder,
interpersonal relationships, life satisfaction, Pittsburgh sleep quality, etc.
TCM
Yang deficiency constitution, Yin deficiency constitution, Qi deficiency constitution, Phlegm-damp constitution, Damp-heat
constitution, Blood stasis constitution, Special constitution, Qi stagnation constitution, Peaceful constitution
Other Items
The device supports more than 20 physical examination items and more than 100 health indicators, which can be flexibly selected
according to needs (customizable and expandable)
Data Transfer
Supports transmission to the Internet or LAN via WIFI/RJ45 network port, as well as QR code communication, data export, etc.
(customizable and docking data)
A4 Print Report
A4 printing
Optional Functions
Bone density, rapid ECG, alcohol test, arteriosclerosis, glycosylated hemoglobin, BIM turntable, dietary pyramid



Product Description:

SH-T17 Health Checkup Kiosk Machine Functions:

1.Smart OS operating system

2.15.6-inch + 7-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.

3. Three ways to get the report: ①thermal printer②phone report③download report④A4 report

4.AI robot guides operation, automatic voice broadcast measurement results.

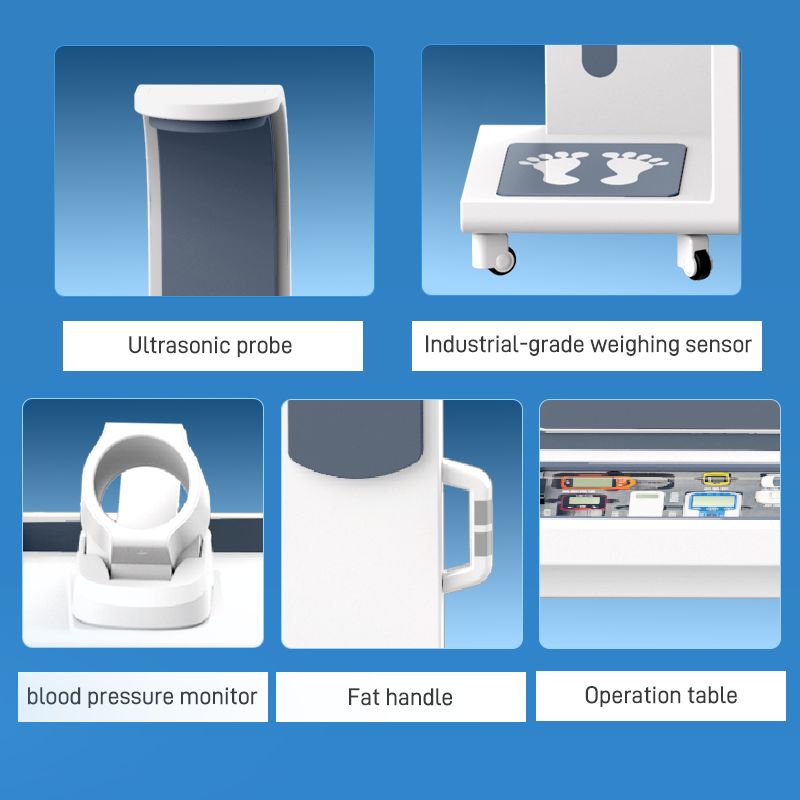

5.Ultrasonic/Millimeter wave technology to measure height (non-touch).

6.Precision balanced beam resistive strain sensor.

7.Supports 17 languages including English, can switch languages freely.

8.Intelligent pressurization technology, oscillometric measurement method

(supports left and right arm)

9.Intelligent recognition: standard: face recognition, user input login;

10.Blood pressure measurement: 0-299mmHg(0kPa-39.9kPa);  Pulse range:40-180 beats/min.

11.Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc.

12. Body fat measurement indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.

13.Optional functions:Thailand IC/ID card, QR code, etc.



SH-T17 Multi Function Medical Kiosk 0

SH-T17 Multi Function Medical Kiosk 1

SH-T17 Multi Function Medical Kiosk 2

Certifications:

SH-T17 Multi Function Medical Kiosk 3

Hot Sale Products:

SH-T17 Multi Function Medical Kiosk 4

Company Profile:

SH-T17 Multi Function Medical Kiosk 5

SH-T17 Multi Function Medical Kiosk 6
