제품 상세 정보:
원래 장소: 중국 허난성
브랜드 이름: SHANGHE
인증: CE/ISO13485/OMIL
모델 번호: SH-V9F
문서: SH-V9F-2025.pdf
결제 및 배송 조건:
최소 주문 수량: 1세트
가격: 1620usd
포장 세부 사항: 179*41*21cm(20kg),43*67*49cm(20kg), 0.3CBM
배달 시간: 5~15일
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력: 한 달에 6000 세트
지금 연락
  • 상세 정보
  • 제품 설명

상세 정보
제품명: 영양성분 분석기 신체 스캐너 3D 발 스캐너 키워드: 체성분분석기 공급업체
전극: 8 점 접촉자 빈도: 20KHz, 100KHz
어플리케이션: 헬스장,클리닉,뷰티 데이터 전송: 표준: RS232, WiFi; 옵션: 블루투스, 3G/4G, RJ45
언어: 영어를 포함한 17 개 언어를 지원하며 언어를 자유롭게 전환 할 수 있습니다 차원: 55cm*42cm*235cm/L*W*H
재료: 금속 캐비넷

제품 설명

Nutritional Content Analyzer Body Scanner 3d Foot Scanners


Nutritional Content Analyzer Body Scanner 3d Foot Scanners 0

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 1

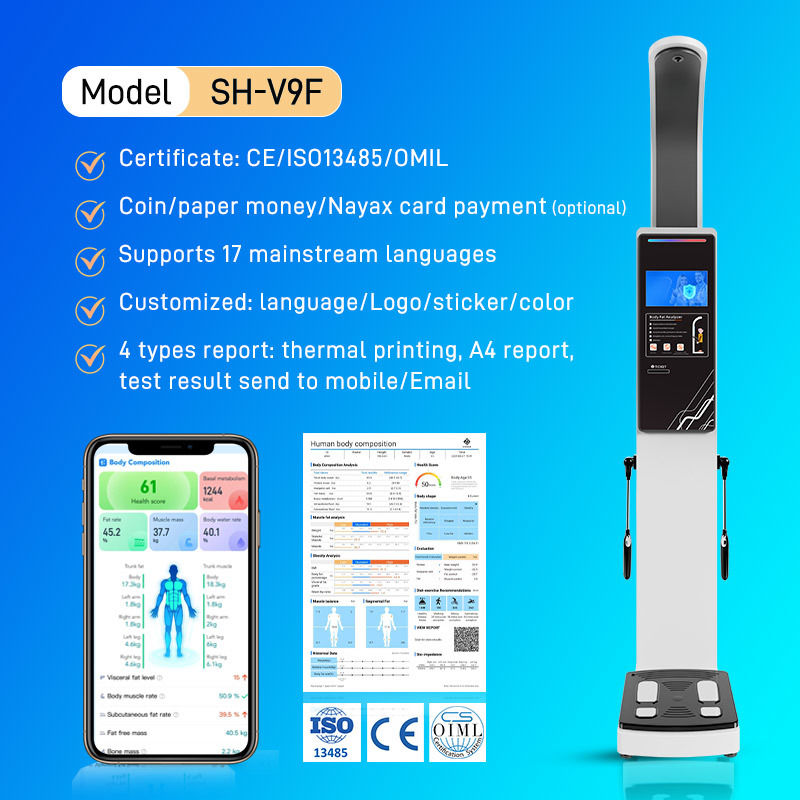

Product Specifications:

Model
SH-V9F

Measurement Items
Weight, height, BMI, body shape, ideal weight, weight control, healthy weight range; basic assessment: fat mass, body fat percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism, waist-to-hip ratio, etc.



Body composition analyzer

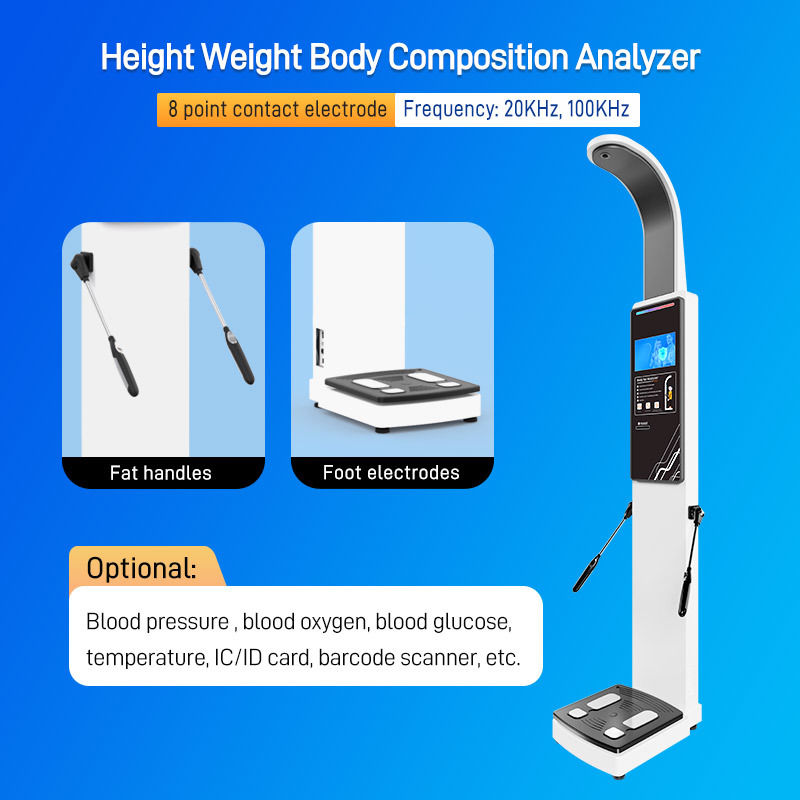

8-point contact electrode, multi-frequency bioelectrical impedance (BIA)
Frequency: 20KHz, 100KHz
Impedance measurement range: 10-2000Ω
Current: ≤420±20μA
Segments:5 parts (left arm, right arm, trunk, left leg, right leg)

Height Measurement
Measure range: 20-205cm
accuracy: ±0.5cm, division value: 0.5cm or 0.1cm adjustable
Measure mode: ultrasonic probe

Weight Measurement
Measure range: 5-500kg
accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
Measure mode: precise balanced sendor
Languages
Supports 17 languages including Spanish and Arabic, English, can switch languages freely.
Display Mode

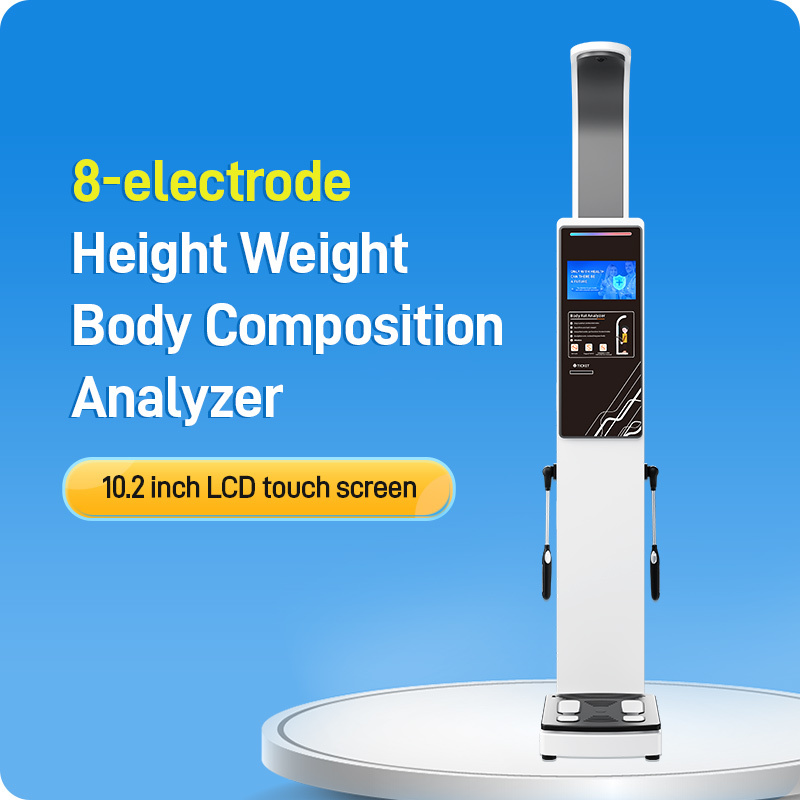

AI robot guided operation, HD LCD 10.2-inch display touch system, play pictures and videos in standby mode.
Report Output
①Thermal printing; ②scan QR code by phone to view report and download the A4 report; ③A4 printer optional
Payment methods
Coin/paper money/Nayax card payment (optional)
Coin operated(Optional)
The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness
Power Supply Voltage
AC160v-250v,50HZ
Data Output Format
Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45
Overall dimension
550*390*2350mm /LWH(mm)
Packing Size
180*49*22cm(20kg) 68*49*40cm(20kg) 0.3CBM
Identify(Optional)
Face recognition, QR code/barcode, Enter account/mobile number,IC/ID card, etc.


Certifications:

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 2

Product Description:

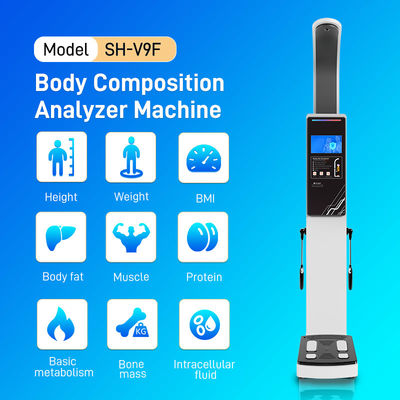

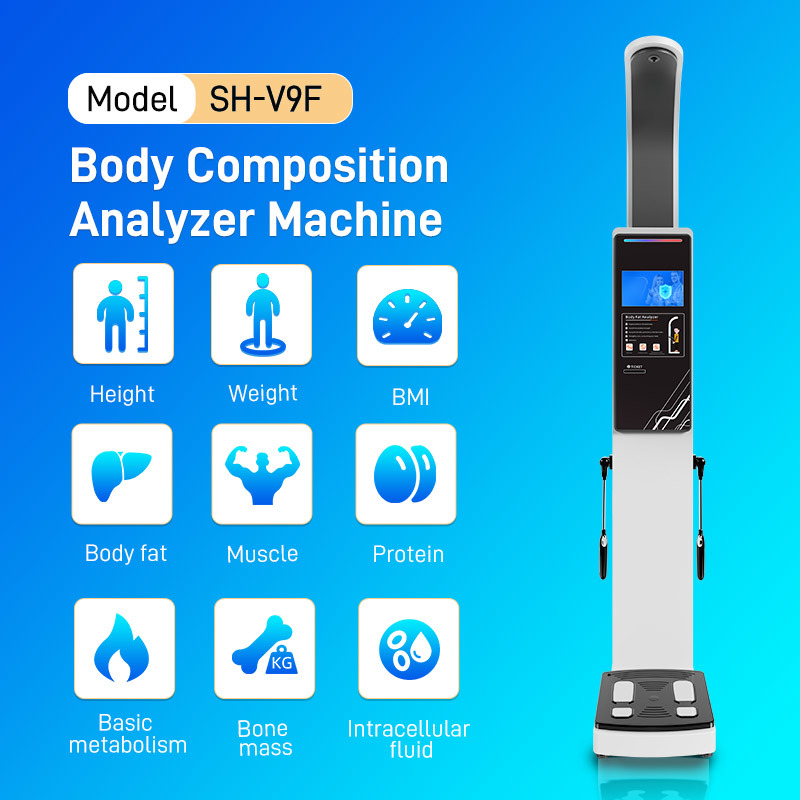

SH-V9F Body Composition Analyzer Machine Functions:

1.The main function is height, weight, BMI, body composition analysis, thermal printer, face recognition(optional).

2.10.2-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.

3.Optional: coin operated payment function helping customers make profits.

4.AI robot guides operation, automatic voice broadcast measurement results.

5.Ultrasonic/Millimeter wave technology to measure height (non-touch).

6.Precision balanced beam resistive strain sensor.

7.Supports 17 languages including English, can switch languages freely.

8.8-point contact electrode, multi-frequency bioelectrical impedance (BIA). Indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.

9.Frequency: 20KHz, 100KHz

10.Applicable Age: 6-99 years old

11.Segments:5 parts (left arm, right arm, trunk, left leg, right leg)

12.Micro thermal printer automatic paper cutting, paper size: 50*57mm.

13.Three ways to get the report: ①thermal printer②phone report③download report

14.Data transfer: RS232 serial port,WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the customer's software, such as HIS/LIS system/APP/PC, etc. 15.Optional Expansion: blood pressure , blood oximeter, blood glucose, temperature, IC/ID, ID card, barcode scanner, etc.


Nutritional Content Analyzer Body Scanner 3d Foot Scanners 3

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 4

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 5

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 6

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 7

Top Selling Product:

Nutritional Content Analyzer Body Scanner 3d Foot Scanners 8

Our Advantages:

1. 24 hours to reply your inquiries and 72 hours solution response.

2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
