Zhengzhou shanghe electronic technology co. LTD

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine

제품 상세 정보:
원래 장소: 중국 허난성
브랜드 이름: SHANGHE
인증: CE/ISO13485/OMIL
모델 번호: SH-10F
문서: SH-10F-2025.pdf
결제 및 배송 조건:
최소 주문 수량: 1세트
가격: 1072usd
포장 세부 사항: 121*48*36cm(23kg)
배달 시간: 5~15일
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력: 한 달에 6000 세트
  • 상세 정보
  • 제품 설명

상세 정보

제품명: 인기 있는 신체 분석 기계 종합 분석 신체 상태 BMI 지방 기계 예어: BMI 지방 기계
전극: 8점 접촉 전극 빈도: 20KHz, 100KHz
어플리케이션: 체육관, 진료소, 영양 센터, 미용실, 건강 센터, 포장: 121*48*36cm(23kg)
치수 (mm): 55*38*115cm/L*W*H 데이터 전송: 표준: RS232, WiFi; 옵션: 블루투스, 3G/4G, RJ45
언어: 영어를 포함한 17 개 언어를 지원하며 언어를 자유롭게 전환 할 수 있습니다

제품 설명

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine


Certifications:

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 0

Product Specifications:

Model
SH-10F

Measurement Items
Weight, BMI, body shape, ideal weight, weight control, healthy weight range; basic assessment: fat mass, body fat percentage, body water content, water percentage, skeletal muscle mass, muscle mass, muscle percentage, basal metabolism, waist-to-hip ratio, etc.



Body composition analyzer
8-point contact electrode, multi-frequency bioelectrical impedance (BIA)
Frequency: 20KHz, 100KHz
Impedance measurement range: 10-2000Ω
Current: ≤420±20μA
Segments:5 parts (left arm, right arm, trunk, left leg, right leg)
Measurement time
≤60 seconds

Weight Measurement
Measure range: 5-500kg
accuracy: ±0.1kg, division value: 0.1kg or 0.01kg adjustable
Measure mode: precise balanced sendor


Local Archives
This device supports one-step self-service registration and measurement, health screening, historical data query, big data
statistical analysis and management, and provides health guidance services, dietary suggestions, exercise planning, etc. based on
measurement data.

Data Output Format
Standard: RS232, WiFi; Optional: Bluetooth, 3G/4G, RJ45, data can be transmitted to the customer's software, such as Fitness Center Membership Management System/APP/PC, etc.
Languages
Supports 17 languages including Spanish and Arabic, English, can switch languages freely.
Display Mode

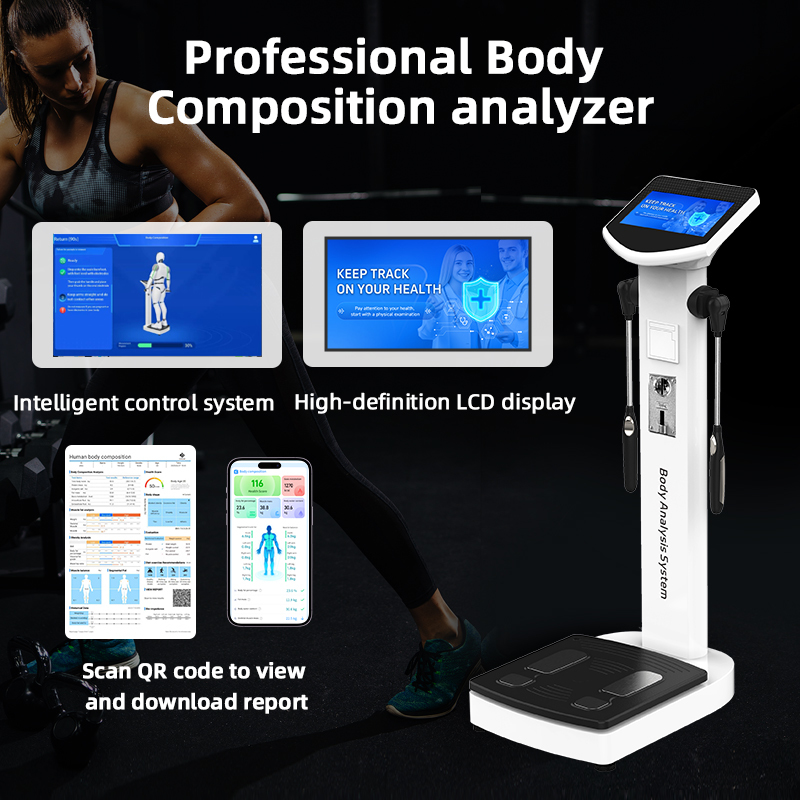

AI robot guided operation, HD LCD 10.2-inch display touch system, play pictures and videos in standby mode.
Report Output
①Thermal printing; ②scan QR code by phone to view and download the A4 report; ③A4 printer optional
Coin operated(Optional)
The coin acceptor can recognize coins from different countries. The coin size is 15mm-29mm in diameter and 1.8mm-3.0mm in thickness
Power Supply Voltage
AC160v-250v,50HZ
Overall dimension
550*380*1130mm (L*W*H)
Packing Size
121*48*36cm(23kg)
Identify(Optional)
Face recognition, QR code/barcode, Enter account/mobile number,IC/ID card, etc.


Product Description:

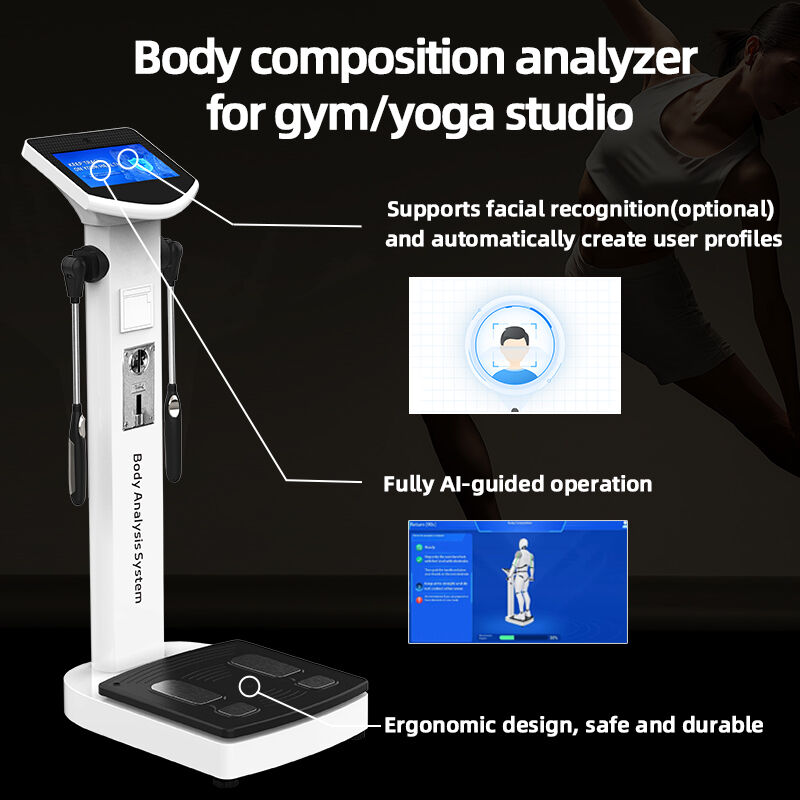

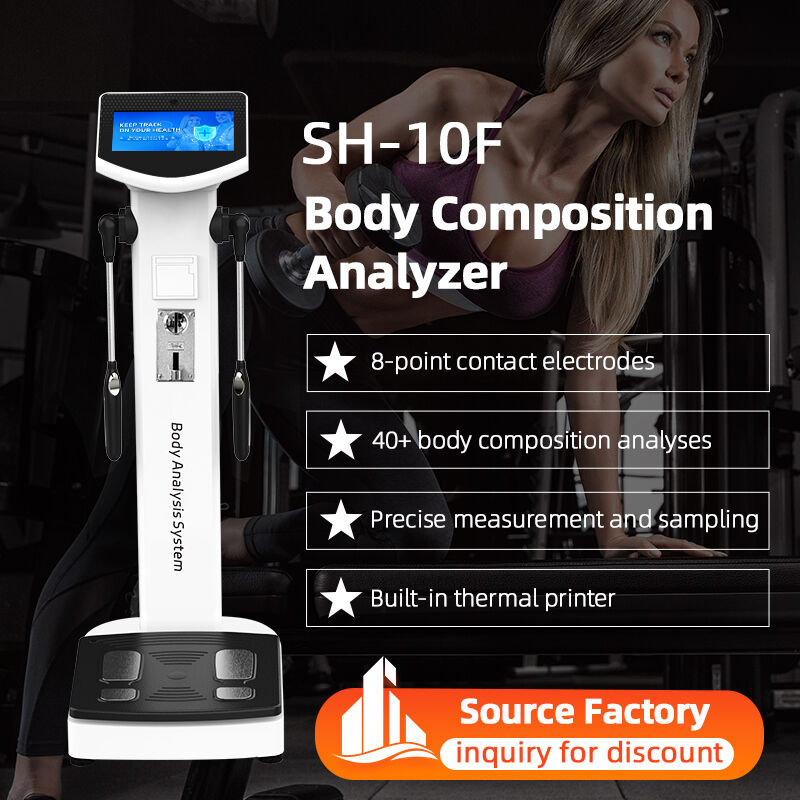

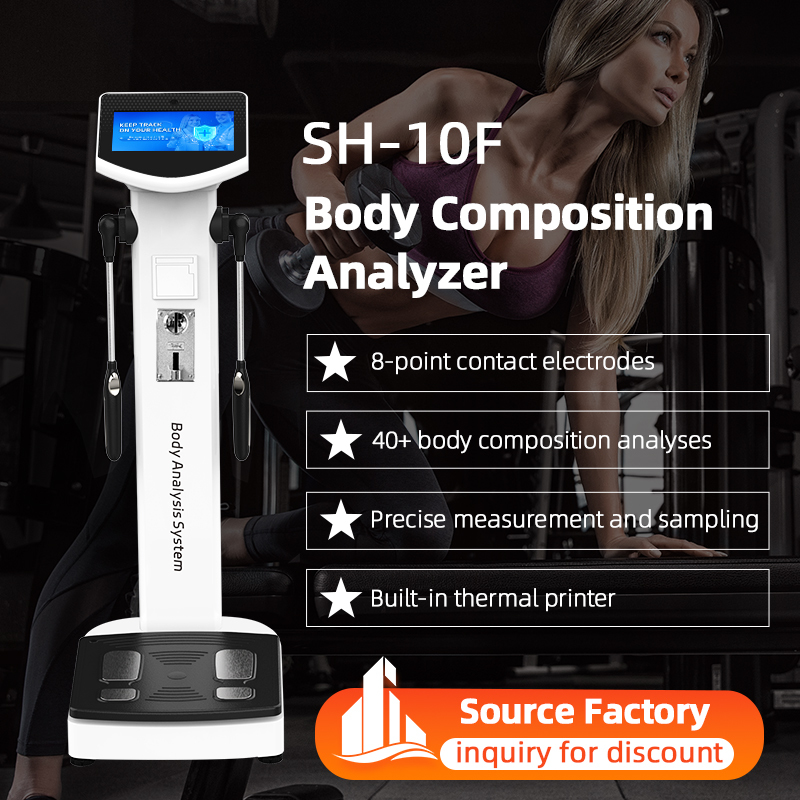

SH-10F Body Composition Analyzer Machine Functions:
1.The main function is weight, BMI, body composition analysis, thermal printer, face recognition(optional).
2.10.2-inch LCD touch screen, displays indoor temperature and current time in standby mode, customize videos and images for brand promotion.
3.Optional: coin operated payment function helping customers make profits.
4.AI robot guides operation, automatic voice broadcast measurement results.
5.Precision balanced beam resistive strain sensor.
6.Supports 17 languages including English, can switch languages freely.
7.8-point contact electrode, multi-frequency bioelectrical impedance (BIA). Indicators: body fat percentage, body water percentage, muscle mass percentage, basal metabolic rate, inorganic salts, etc.
8.Frequency: 20KHz, 100KHz
9.Applicable Age: 6-99 years old
10.Segments:5 parts (left arm, right arm, trunk, left leg, right leg)
11.Micro thermal printer automatic paper cutting, paper size: 50*57mm.
12.Three ways to get the report: ①thermal printer②phone report③download report
13.Data transfer: RS232 serial port, WiFi (standard); Bluetooth/4G/cloud interface (optional), etc, data can be transmitted to the
customer's software, such as HIS/LIS system/APP/PC, etc.
14.Optional Expansion: facial recognition, IC/ID card reader, barcode scanner, etc.


Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 1

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 2

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 3

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 4

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 5

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 6

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 7

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 8

Hot Sell Products:

Popular Body Analysis Machine Comprehensive Analysis Body Status BMI Fat Machine 9

Our Advantages:

1. 24 hours to reply your inquiries and 72 hours solution response.
2. For one year free warranty and after-sales online technology support.
3. Can provide your best software and hardware customization solution if you need.
4. All scales already exported many countries, support your own logo,OEM/ODM service
5. Own Experienced R&D and factory to help your better use our products, and help you grow your market business based on we have the range of distributor policy.
6. Offer you best solution is our honor! SHANGHE do hope we can build good partnerships in the long term business and help you expand your sales!
